FIRST® Robotics Competition (FRC®)
2015 roboRIO Control System
Control System 2015-2021
Beta Testing Videos |
|
|---|---|
| VRM 12v Burnout - Stress Testing | |
|
Continuous rating for both VRM 5v and 12v outputs are ~1.5a.
2a is the momentary peak limit. So, normally what happens when the 12v outputs get a steady 2a load is that the current is simply cut off. However, if this happens a lot and the whole VRM heats up way too much then we get a heat overload. Took 3 minutes, 35 seconds from test start after many other tests heated up the VRM. |
|
|
Voltage display on the left/current amps displayed on the right
Voltage plot on the scope VRM 12v Burnout 852x480, 45 sec (.mov, 7.8 MB) |
|

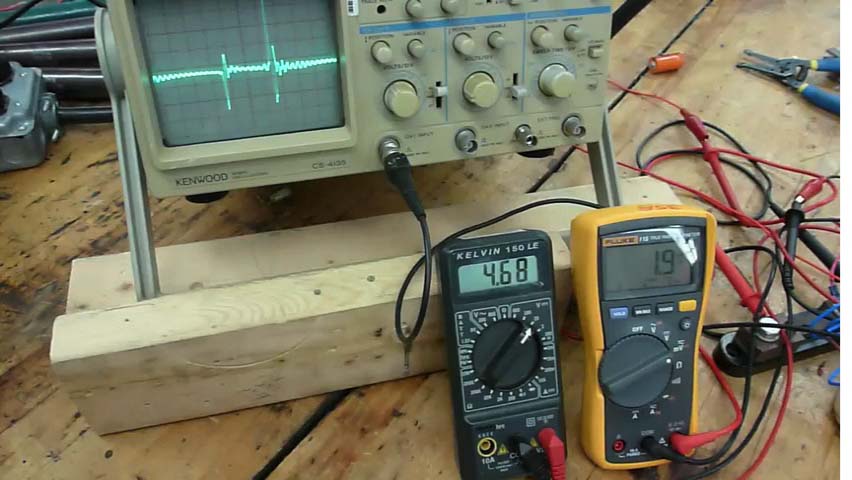

| VRM 5v Outage - Stress Testing | |
|
The VRM 5v output handled continuous over-current (2a) very well by just shutting off the current.
This test was repeated a half dozen times.
VRM 5v Outage with a 2a load |
|
|
Voltage display on the left/current amps displayed on the right
Voltage plot on the scope VRM 5v Outage 852x480, 41 sec (.mov, 7.1 MB) |
|

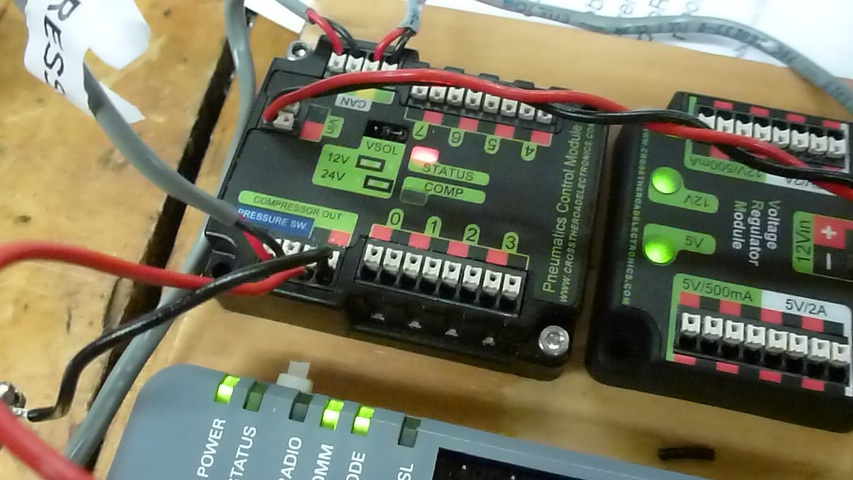

| Overcurrent Compressor Retry | |
| The PCM retries the compressor periodically if an over current condition is detected |
|

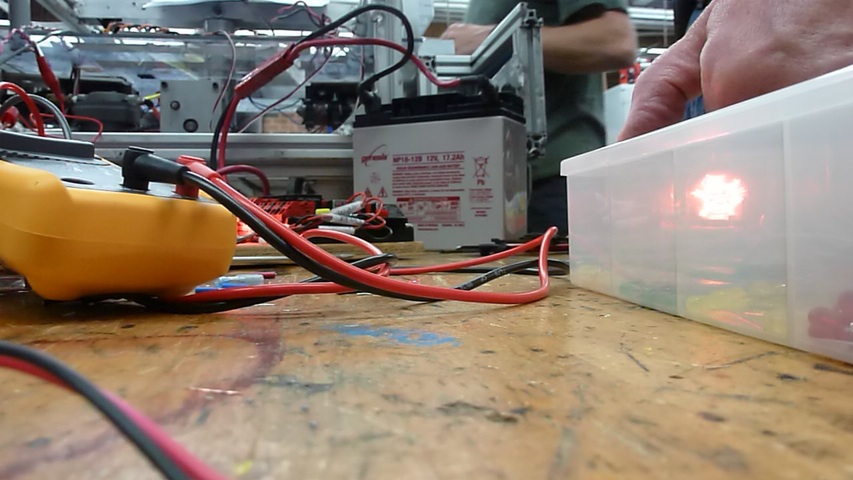

| View From The Tabletop | |
| View From The Tabletop |
|

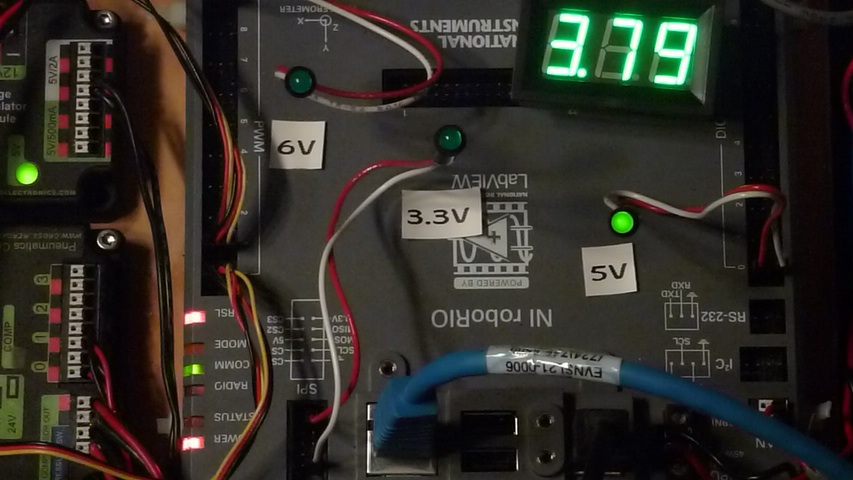

| Brownout Testing - 3.8v roboRIO Reboot | |
|
3.8v roboRIO Reboot
This improvement from 4.3v might be due to more available current. |
|

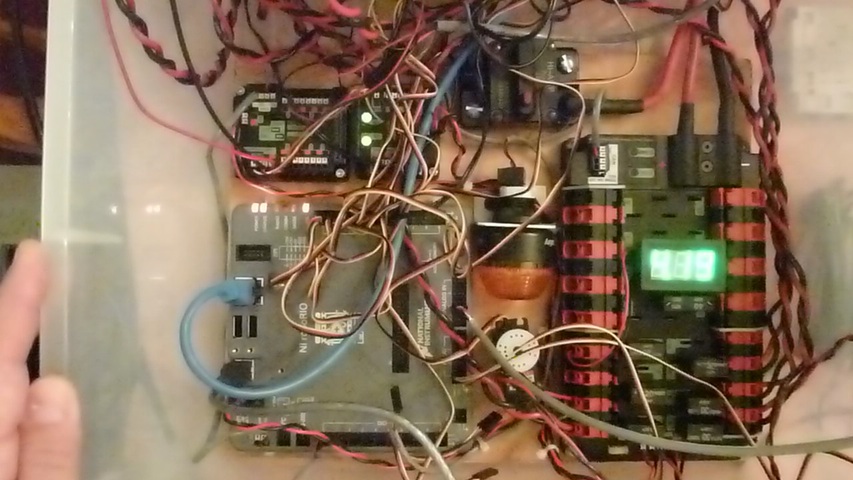

| Brownout Testing - 4.3v roboRIO Reboot | |
|
4.3v roboRIO Reboot
Note that these transition voltages are adjustable during the Beta testing phase and may change. |
|

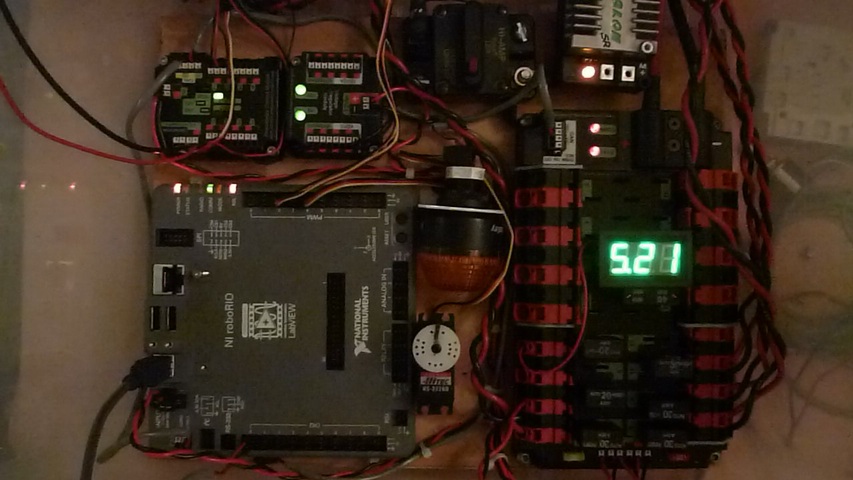

| Brownout Testing - 5v Transition | |
|
5v Transition
Note that these transition voltages are adjustable during the Beta testing phase and may change. |
|

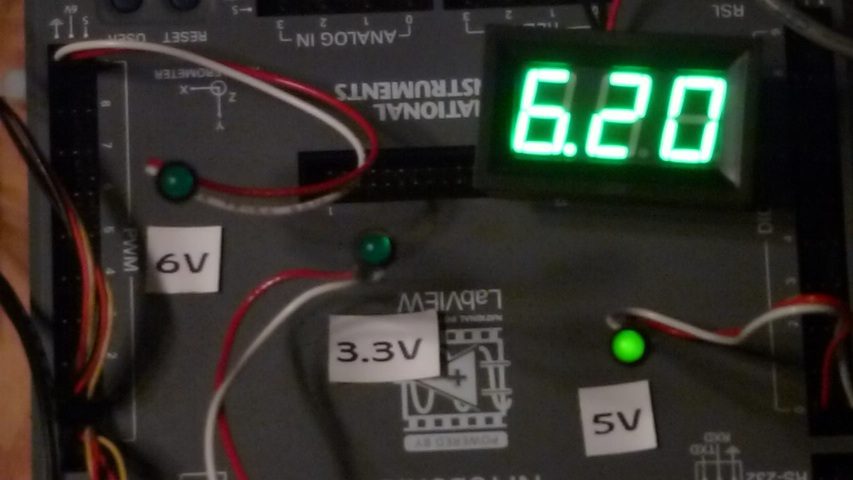

| Brownout Testing - @6.20v the 3.3v rail fails | |
|
@6.20v the 3.3v rail fails
Note that these transition voltages are adjustable during the Beta testing phase and may change. |
|

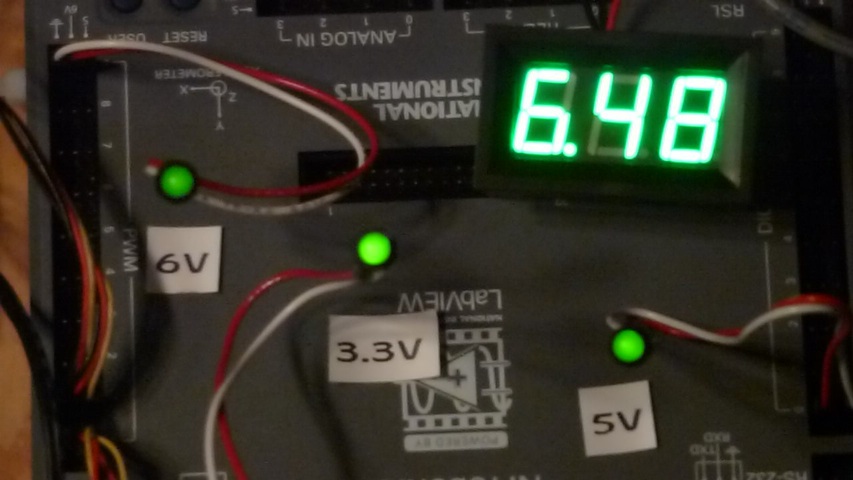

| Brownout Testing - @6.48v the 6v rail fails | |
|
@6.48v the 6v rail fails
Note that these transition voltages are adjustable during the Beta testing phase and may change. |
|

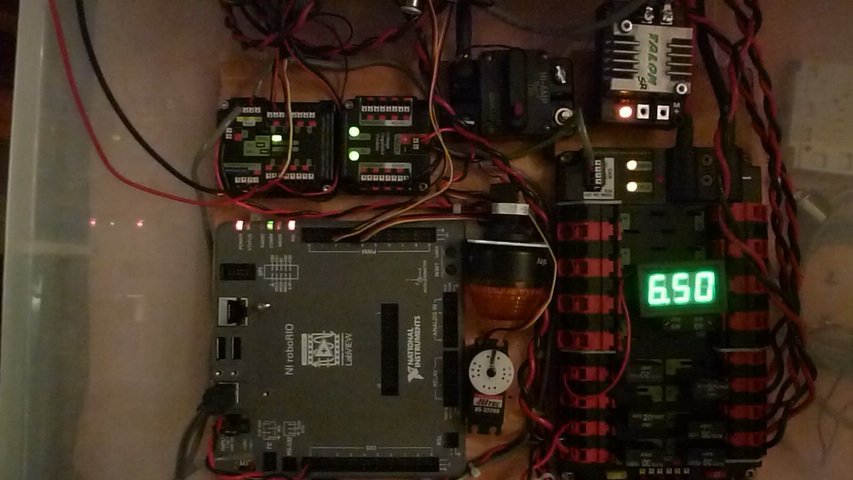

| Brownout Testing - 6.5v Transition | |
|
6.5v Transition
Note that these transition voltages are adjustable during the Beta testing phase and may change. |
|
| Brownout Testing - 7v Transition | |
|
7v transition
Note that these transition voltages are adjustable during the Beta testing phase and may change. |
|

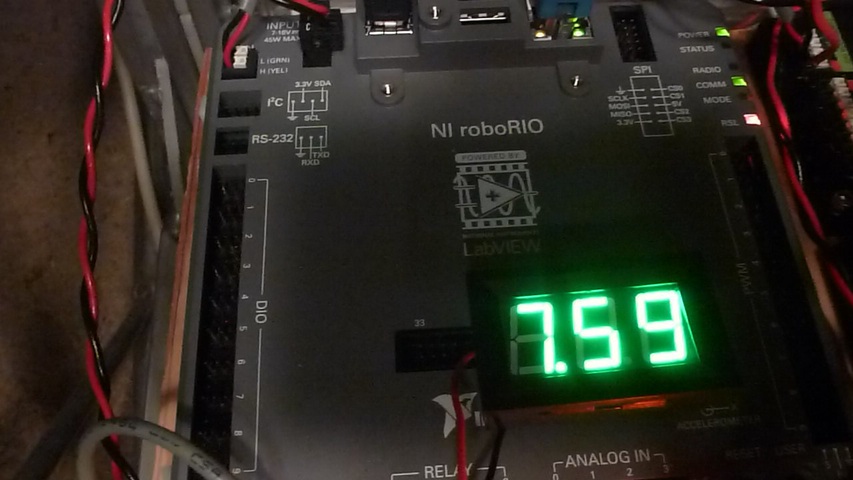

| Brownout Testing - Low Voltage Reboot | |
| Low Voltage Reboot |
|
| Brownout Testing - Low Current roboRIO Reboot | |
| Low Current roboRIO Reboot |
|

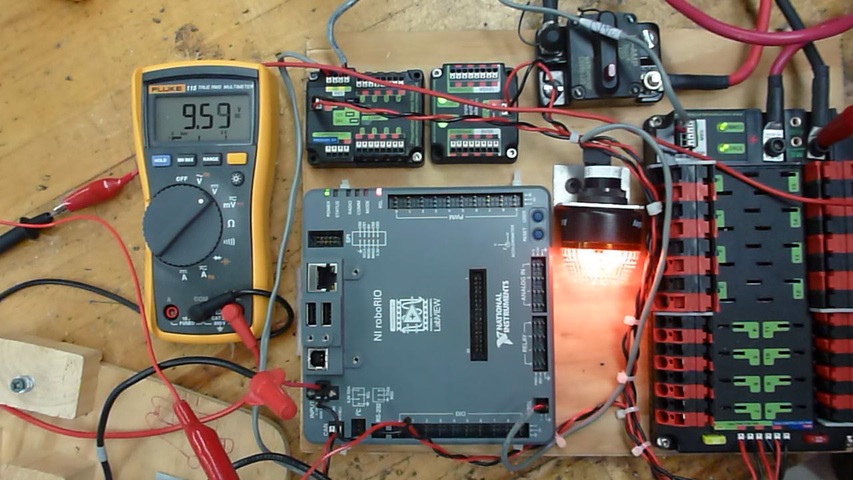

| Brownout Testing - Low Voltage roboRIO Only | |
| Low Voltage roboRIO Only |
|

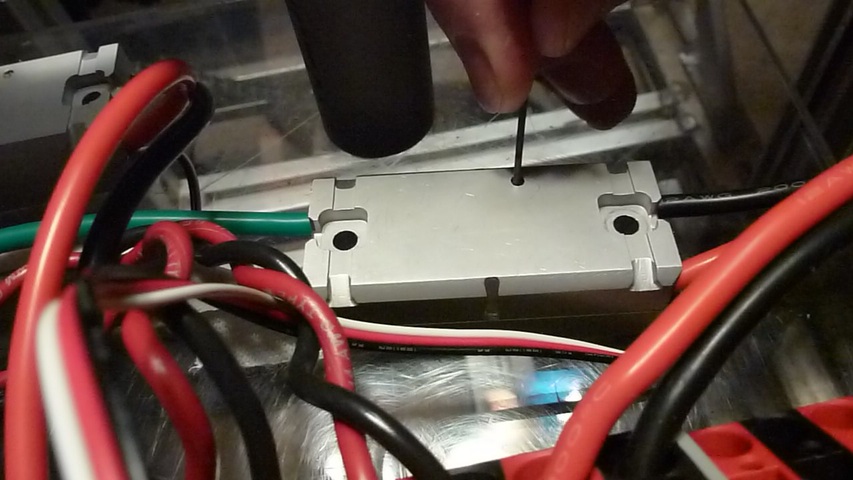

| VictorSP Coast-Brake-Calibrate | |
| VictorSP Coast-Brake-Calibrate |
|

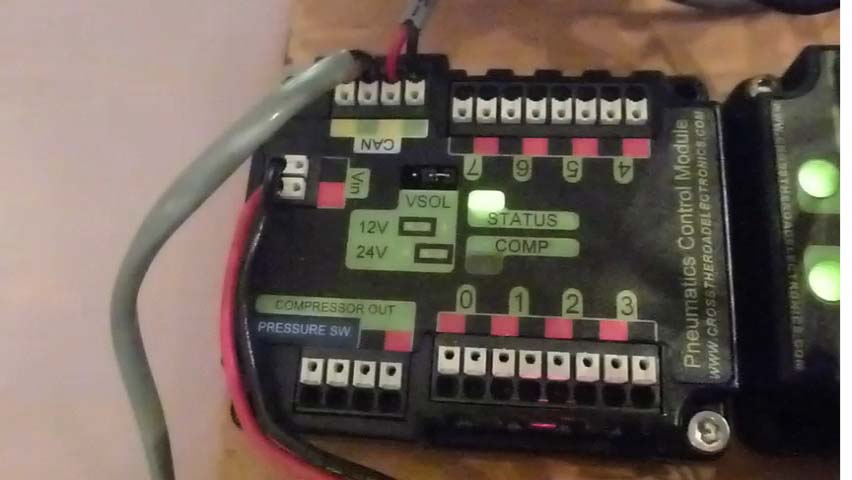

| PCM Status Blinks | |
| PCM Status Blinks |
|
